🥇 RAGET Evaluation¶
After automatically generating a test set for your RAG agent using RAGET, you can then evaluate the correctness of the agent’s answers compared to the reference answers (using a LLM-as-a-judge approach). The main purpose of this evaluation is to help you identify the weakest components in your RAG agent.
ℹ️ You can find a tutorial where we demonstrate the capabilities of RAGET with a simple RAG agent build with LlamaIndex on the IPCC report.
Correctness Evaluation on the Generated Test Set¶
First, you need to wrap your RAG agent in a function that takes a question as input and returns an answer. For
conversational agents, we will also pass a history parameter which will contain a list of dictionaries in OpenAI chat
format (e.g. {"role": "user", "content": "What is the capital of France?"}).
Then, you can evaluate your RAG agent using the giskard.rag.evaluate function. This function will compare the answers
of your RAG agent with the reference answers in the test set.
from giskard.rag import evaluate
# Wrap your RAG model
def get_answer_fn(question: str, history=None) -> str:
"""A function representing your RAG agent."""
# Format appropriately the history for your RAG agent
messages = history if history else []
messages.append({"role": "user", "content": question})
# Get the answer
answer = get_answer_from_agent(messages) # could be langchain, llama_index, etc.
return answer
# Run the evaluation and get a report
report = evaluate(get_answer_fn, testset=testset, knowledge_base=knowledge_base)
The evaluation generates a RAGReport object. Once you get your report, you can display it in a
notebook or save it as an HTML file.
display(report) # if you are working in a notebook
# or save the report as an HTML file
report.to_html("rag_eval_report.html")
This report is what you’ll obtain:
RAG Components Scores¶
RAGET computes scores for each component of the RAG agent. The scores are computed by aggregating the correctness of the agent’s answers on different question types (see question type to component mapping here). Each score grades a component on a scale from 0 to 100, 100 being a perfect score. Low scores can help you identify weaknesses of your RAG agent and which components need improvement.
Here is the list of components evaluated with RAGET:
Generator: the LLM used inside the RAG to generate the answersRetriever: fetch relevant documents from the knowledge base according to a user queryRewriter(optional): rewrite the user query to make it more relevant to the knowledge base or to account for chat historyRouter(optional): filter the query of the user based on his intentions (intentions detection)Knowledge Base: the set of documents given to the RAG to generate the answers
Analyze Correctness and Failures¶
You can access the correctness of the agent aggregated in various ways or analyze only it failures:
# Correctness on each topic of the Knowledge Base
report.correctness_by_topic()
# Correctness on each type of question
report.correctness_by_question_type()
# get all the failed questions
report.failures
# get the failed questions filtered by topic and question type
report.get_failures(topic="Topic from your knowledge base", question_type="simple")
You can also export the report to a pandas DataFrame to analyze the results programmatically:
results = report.to_pandas()
RAGAS Metrics¶
You can pass additional evaluation metrics to the evaluate function. They will be computed during the evaluation.
We currently provide RAGAS metrics as additional metrics.

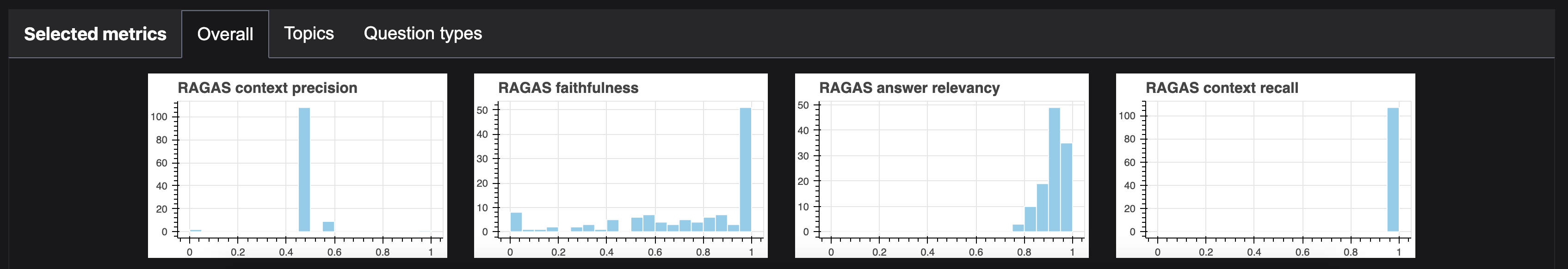

The results of your metrics will be displayed in the report object as histograms and will be available inside the report main DataFrame.
To include RAGAS metrics in evaluation, make sure to have installed the ragas>=0.1.5 library. Some of the RAGAS metrics need access to the contexts retrieved by the RAG agent for each question. These can be returned by the get_answer_fn function along with the answer to the question:
from giskard.rag import AgentAnswer
def get_answer_fn(question: str, history=None) -> str:
"""A function representing your RAG agent."""
# Format appropriately the history for your RAG agent
messages = history if history else []
messages.append({"role": "user", "content": question})
# Get the answer and the documents
agent_output = get_answer_from_agent(messages)
# Following llama_index syntax, you can get the answer and the retrieved documents
answer = agent_output.text
documents = agent_output.source_nodes
# Instead of returning a simple string, we return the AgentAnswer object which
# allows us to specify the retrieved context which is used by RAGAS metrics
return AgentAnswer(
message=answer,
documents=documents
)
Then, you can include the RAGAS metrics in the evaluation:
from giskard.rag.metrics.ragas_metrics import ragas_context_recall, ragas_faithfulness
report = evaluate(
get_answer_fn,
testset=testset,
knowledge_base=knowledge_base,
metrics=[ragas_context_recall, ragas_faithfulness]
)
Built-in metrics include ragas_context_precision, ragas_faithfulness, ragas_answer_relevancy,
ragas_context_recall. Note that including these metrics can significantly increase the evaluation time and LLM usage.
Alternatively, you can directly pass a list of answers instead of get_answer_fn to the evaluate function, you can then pass the retrieved documents as an optional argument retrieved_documents to compute the RAGAS metrics.
Creating Custom Metrics¶
You can easily create your own metrics by extending the base Metric class from Giskard.
To illustrate how simple it is to build a custom metric, we’ll implement the CorrectnessScoreMetric — a custom metric that evaluates the performance of a language model as a judge.
While Giskard provides a default boolean correctness metric to check if a RAG (Retrieval-Augmented Generation) answer is correct, in this case, we want to generate a numerical score to gain deeper insights into the model’s performance.
Step 1: Building the Prompts¶
Before we can evaluate the model’s output, we need to craft a system prompt and input template for the language model. The system prompt will instruct the LLM on how to evaluate the Q&A system’s response, and the input template will format the conversation history, agent’s response, and reference answer.
System Prompt¶
The system prompt provides the LLM with clear instructions on how to rate the agent’s response. You’ll be guiding the LLM to give a score between 1 and 5 based on the correctness, accuracy, and factuality of the answer.
SYSTEM_PROMPT = """Your task is to evaluate a Q/A system.
The user will give you a question, an expected answer and the system's response.
You will evaluate the system's response and provide a score.
We are asking ourselves if the response is correct, accurate and factual, based on the reference answer.
Guidelines:
1. Write a score that is an integer between 1 and 5. You should refer to the scores description.
2. Follow the JSON format provided below for your output.
Scores description:
Score 1: The response is completely incorrect, inaccurate, and/or not factual.
Score 2: The response is mostly incorrect, inaccurate, and/or not factual.
Score 3: The response is somewhat correct, accurate, and/or factual.
Score 4: The response is mostly correct, accurate, and factual.
Score 5: The response is completely correct, accurate, and factual.
Output Format (JSON only):
{{
"correctness_score": (your rating, as a number between 1 and 5)
}}
Do not include any additional text—only the JSON object. Any extra content will result in a grade of 0.
"""
Input Template¶
The input template formats the actual content you will send to the model. This includes the conversation history, the agent’s response, and the reference answer.
INPUT_TEMPLATE = """
### CONVERSATION
{conversation}
### AGENT ANSWER
{answer}
### REFERENCE ANSWER
{reference_answer}
"""
Step 2: Subclassing the Metric Class¶
We implement the custom metric by subclassing the Metric class provided by giskard.rag.metrics.base.
from giskard.rag.metrics.base import Metric
from giskard.rag import AgentAnswer
class CorrectnessScoreMetric(Metric):
def __call__(self, question_sample: dict, answer: AgentAnswer) -> dict:
pass
Now all we need to do is to fill in this __call__ method with our logic.
Metrics are meant to be used with the evaluate function. That is where we assume the inputs are coming from.
Note the input types:
question_sampleis a dictionary that must have the following keys:conversation_history,questionandreference_answeransweris of typeAgentAnswer, which is a dataclass representing the output of the RAG system being evaluated. It includes two attributes:message, which contains the generated response, anddocuments, which holds the retrieved documents.
The core of our new metric consists in a litellm call with the prompts specified earlier.
from giskard.rag.metrics.base import Metric
from giskard.rag import AgentAnswer
from giskard.rag.question_generators.utils import parse_json_output
from giskard.rag.metrics.correctness import format_conversation
from giskard.llm.client import get_default_client
from llama_index.core.base.llms.types import ChatMessage
class CorrectnessScoreMetric(Metric):
def __call__(self, question_sample: dict, answer: AgentAnswer) -> dict:
# Retrieve the llm client
llm_client = self._llm_client or get_default_client()
# Call the llm
out = llm_client.complete(
messages=[
ChatMessage(
role="system",
content=SYSTEM_PROMPT,
),
ChatMessage(
role="user",
content=INPUT_TEMPLATE.format(
conversation=format_conversation(
question_sample.conversation_history
+ [{"role": "user", "content": question_sample.question}]
),
answer=answer.message,
reference_answer=question_sample.reference_answer,
),
),
],
temperature=0,
format="json_object",
)
# Parse the output string representation of a JSON object into a dictionary
json_output = parse_json_output(
out.content,
llm_client=llm_client,
keys=["correctness_score"],
caller_id=self.__class__.__name__,
)
return json_output
Note how the keys=["correctness_score"] must match with the keys you asked from the llm in your SYSTEM_PROMPT.
As you can see, it is as simple as calling our llm and parsing its output as a dictionary with one key, correctness_score, containing the score given by the LLM.
Putting everything together, here is our final implementation:
from giskard.llm.client import get_default_client
from giskard.llm.errors import LLMGenerationError
from giskard.rag import AgentAnswer
from giskard.rag.metrics.base import Metric
from giskard.rag.question_generators.utils import parse_json_output
from giskard.rag.metrics.correctness import format_conversation
from llama_index.core.base.llms.types import ChatMessage
SYSTEM_PROMPT = """Your task is to evaluate a Q/A system.
The user will give you a question, an expected answer and the system's response.
You will evaluate the system's response and provide a score.
We are asking ourselves if the response is correct, accurate and factual, based on the reference answer.
Guidelines:
1. Write a score that is an integer between 1 and 5. You should refer to the scores description.
2. Follow the JSON format provided below for your output.
Scores description:
Score 1: The response is completely incorrect, inaccurate, and/or not factual.
Score 2: The response is mostly incorrect, inaccurate, and/or not factual.
Score 3: The response is somewhat correct, accurate, and/or factual.
Score 4: The response is mostly correct, accurate, and factual.
Score 5: The response is completely correct, accurate, and factual.
Output Format (JSON only):
{{
"correctness_score": (your rating, as a number between 1 and 5)
}}
Do not include any additional text—only the JSON object. Any extra content will result in a grade of 0.
"""
INPUT_TEMPLATE = """
### CONVERSATION
{conversation}
### AGENT ANSWER
{answer}
### REFERENCE ANSWER
{reference_answer}
"""
class CorrectnessScoreMetric(Metric):
def __call__(self, question_sample: dict, answer: AgentAnswer) -> dict:
"""
Compute the correctness *as a number from 1 to 5* between the agent answer and the reference answer.
Parameters
----------
question_sample : dict
A question sample from a QATestset.
answer : AgentAnswer
The answer of the agent on the question.
Returns
-------
dict
The result of the correctness scoring. It contains the key 'correctness_score'.
Raises
------
LLMGenerationError
If there is an issue during the LLM evaluation process.
"""
# Implement your LLM call with litellm
llm_client = self._llm_client or get_default_client()
try:
out = llm_client.complete(
messages=[
ChatMessage(
role="system",
content=SYSTEM_PROMPT,
),
ChatMessage(
role="user",
content=INPUT_TEMPLATE.format(
conversation=format_conversation(
question_sample.conversation_history
+ [{"role": "user", "content": question_sample.question}]
),
answer=answer.message,
reference_answer=question_sample.reference_answer,
),
),
],
temperature=0,
format="json_object",
)
# We asked the LLM to output a JSON object, so we must parse the output into a dict
json_output = parse_json_output(
out.content,
llm_client=llm_client,
keys=["correctness_score"],
caller_id=self.__class__.__name__,
)
return json_output
except Exception as err:
raise LLMGenerationError("Error while evaluating the agent") from err
Step 3: Use Your New Metric in the Evaluation Function¶
Integrating our new custom metric into the evaluation process is straightforward. Simply instantiate the metric and pass it to the evaluate function.
# Instantiate the custom correctness metric
correctness_score = CorrectnessScoreMetric(name="correctness_score")
# Run the evaluation with the custom metric
report = evaluate(
answer_fn,
testset=testset, # a QATestset instance
knowledge_base=knowledge_base, # the knowledge base used for building the QATestset
metrics=[correctness_score]
)
Again, be careful that the name argument in the CorrectnessScoreMetric match the key you return in the output dictionary.
Wrap-up¶
In this tutorial, we covered the steps to create and use a custom evaluation metric.
Here’s a quick summary of the key points:
Define the prompts: Create a system prompt and input template for the LLM to evaluate answers.
Implement the new metric: Subclass the
Metricclass and implement the__call__method to create the customCorrectnessScoreMetric.Use the new metric: Instantiate and integrate the custom metric into the evaluation function.
Troubleshooting¶
If you encounter any issues, join our Discord community and ask questions in our #support channel.
